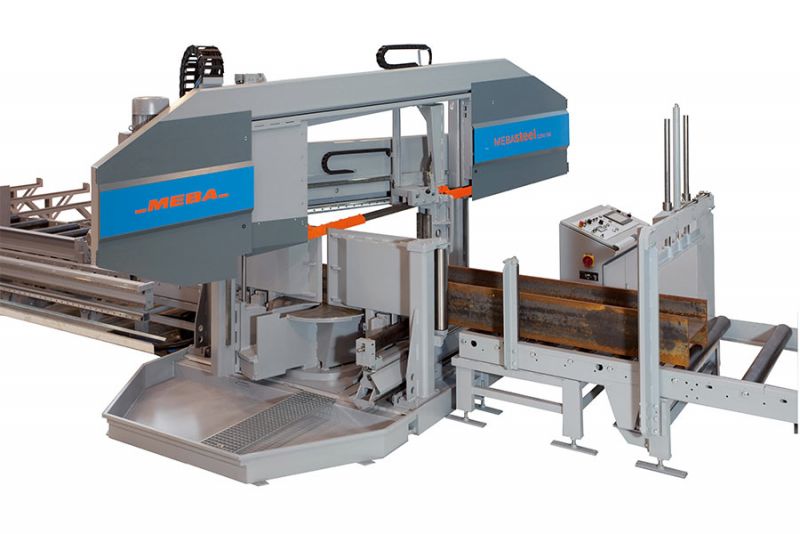

MEBAsteel 1250 DG
MEBAsteel: Unconditionally fast and maximally reliable The powerful dual miter band saw is designed for the heaviest materials, varying profiles, and frequently changing miter cuts. Both-sided miters can be set easily and economically, fully integrated into the material flow, and operate unconditionally fast. The intel...
Description
MEBAsteel: Unconditionally fast and maximally reliable
The powerful dual miter band saw is designed for the heaviest materials, varying profiles, and frequently changing miter cuts. Both-sided miters can be set easily and economically, fully integrated into the material flow, and operate unconditionally fast.
The intelligent all-in-one concept includes all essential functions and, with its technological advantage, delivers one of the fastest and cleanest cuts in the industry.
Standard equipment
- Infinitely variable saw feed control via ball screw drive
- Saw band angled 7° to the material support surface
- Powerful saw band drive
- Infinitely adjustable, frequency-controlled motor with high efficiency and low energy consumption
- Movable lift rollers on both sides for maximum material support
- Hydraulic saw band tension with adjustable band tracking and pressure relief when machine is stopped
- Hydraulic full-stroke material clamping
- Both-sided opening of the clamp for smooth material handling
- Material always clamped as close as possible to the saw band
- NC miter swiveling +/- 60°
- Robust, vibration-damping saw frame guidance with proven two-column construction and linear guides
- Material height detection
- Automatic switching from rapid feed to working feed
- Automatic adjustment of band guide arm to material width
- Precise saw band carbide roller guides
- Electrically driven chip cleaning brush
- Speed automatically adjusts to band speed
- Standard MEBA micro-spray system
- Saw band break monitoring
- Freestanding control panel
- Paint finish silver gray / blue gray (RAL 7001 / RAL 7031)
- Operating manual and spare parts list (digital)
Optional
- Laser light for cut line indication / scribing saws
- LED work light
- Special two-color paint finish according to RAL chart
- Compressor for micro-dosing system
- Hydraulic heater 3 kW
- Control cabinet heater
- Safety package with light barrier interlock
- Roller conveyors available in various lengths
Specifications subject to change without notice.
Technical Attributes
| Brand | MEBA |
|---|---|
| Cutting Capacity | Ø 510 mm / 1250 x 500 mm |
| Working Area | 1250 x 500 mm |
| Automation | Semi-automatic |
| Recommended Use | Heavy steel, Angular cutting |
