MEBAswing 405 DG
The universal helper: smart and uncomplicated Semi-automatic version. Particularly suitable for versatile use with different cross-sections, materials, and frequently changing miter cuts.…
Machine

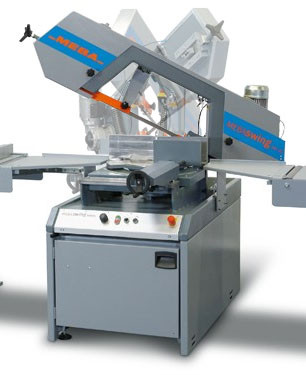

MEBAswing 260 DG-HS
The universal helper: smart and uncomplicated Semi-automatic version. The universally applicable MEBAswing 260 DG-HS miter band saw is ergonomically refined and offers an optimal price-performance ratio. Particularly suitable for versatile use with different cross-sections, materials, and frequently changing miter cuts...
Description
The universal helper: smart and uncomplicated
Semi-automatic version. The universally applicable MEBAswing 260 DG-HS miter band saw is ergonomically refined and offers an optimal price-performance ratio. Particularly suitable for versatile use with different cross-sections, materials, and frequently changing miter cuts. The machine control complies with CE standard 89/289.
Standard equipment
- Semi-automatic sawing cycle with workpiece clamping – cutting – lifting to the preset height after the cut is completed
- Fast miter adjustment from 30° to 150°, stepless via scale with 0.5° accuracy
- The miter pivot point is at the intersection of the saw blade and the material support, ensuring no change in length
- Central machine operation
- Manual material clamping
- At any saw frame angle, the material is clamped square to the material support edge
- Cutting pressure reduction by the weight of the rigid, torsion-resistant saw frame, with fine adjustment via hydraulic damping cylinder depending on material cross-section
- Saw blade drive with automatic shut-off
- Stepless clamping jaw adjustment
- Movable band guide arm, adjustable to material width
- Standard coolant system, optionally expandable with a micro-dosing system
- Machine stand with chip collection tray
- Mechanical saw blade tension
- Precision carbide roller saw blade guidance
- Paint finish silver gray / blue gray (RAL 7001 / RAL 7031)
- 1 saw blade mounted on the machine, 4/6 TPI
- Operating manual and spare parts list (digital)
Optional
- Main vise opens after the cut is completed
- Stepless saw drive for MEBAswing 260 DG-HS
- Measuring stop 0–600 mm – right
- Measuring stop 0–600 mm – left
- Special 2-color paint finish according to RAL chart
- Compressor for micro-dosing system
- Roller conveyors available in various lengths
Specifications subject to change without notice.
Technical Attributes
| Brand | MEBA |
|---|---|
| Cutting Capacity | Ø 260 mm / 300 x 260 mm |
| Working Area | 300 x 260 mm |
| Automation | Semi-automatic |
| Power | 1.1 / 1.8 kW |
| Recommended Use | Angular cutting, Workshop use |
