MEBAswing 405 DG
The universal helper: smart and uncomplicated Semi-automatic version. Particularly suitable for versatile use with different cross-sections, materials, and frequently changing miter cuts.…
Machine

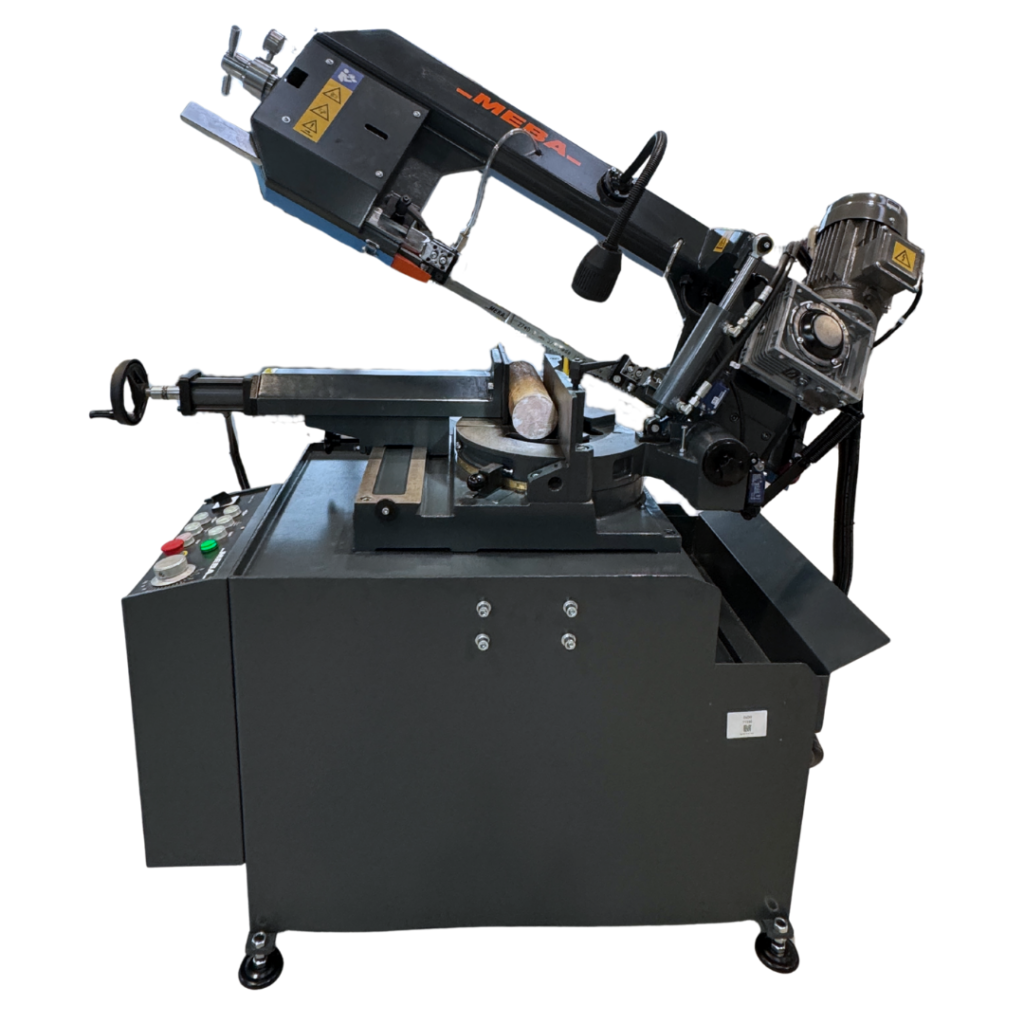

MEBAbase 24 DG-HS
MEBAbase: The must-have for doers The starter saws of the MEBAbase series are suitable for a wide range of applications and are reliable all-rounders. Whether for your hobby in the garage, craftsman or metal worker - there is something for everyone. The universally usable miter band saw machine MEBAbase 24 DG-HS is erg...
Description
MEBAbase: The must-have for doers
The starter saws of the MEBAbase series are suitable for a wide range of applications and are reliable all-rounders. Whetherfor your hobby in the garage, craftsman or metal worker - there is something for everyone.The universally usable miter band saw machine MEBAbase 24 DG-HS is ergonomically mature and has an optimal price-performance ratio.Simple central operation.
Standard equipment
- Manual miter adjustment from 90° to 30°, infinitely variable according to scale with 1.0° accuracy
- The miter pivot point is the intersection between the saw blade and the material, which is why there is no change in length when the angle position is changed
- End stops at 30° - 45° - 90° - 45°
- Hydraulic material clamping. The material is clamped parallel at 90° for every angle setting of the saw frame.
- Central machine operation
- Cutting pressure reduction due to the dead weight of the heavy, torsion-resistant saw frame and fine adjustment depending on the material cross-section via hydraulic damping cylinder and weight compensation spring
- Saw blade drive with limit switch
- Stepless jaw adjustment
- Movable belt guide arm, adjustment to material width
- Saw blade deflection rollers - carbide guide
- Practical chip collection tray with drip screen
- Chip cleaning brush, rotating
- Mechanical saw blade tensioning
- Operating instructions and spare parts list (digital)
- 1 MEBA bimetal saw blade 4/6 ZpZ mounted on machine
- Complete coolant system
- Anthracite paint finish (RAL 7016)
Optional
- Roller conveyors available in various lengths
Specifications subject to change without notice.
The machine is delivered WITHOUT hydraulic oil. This (approx. 25 l) must be filled in before commissioning and the fill level checked.
Technical Attributes
| Brand | MEBA |
|---|---|
| Cutting Capacity | Ø 260 mm / 300 x 260 mm |
| Working Area | 300 x 260 mm |
| Automation | Semi-automatic |
| Recommended Use | Angular cutting, Workshop use |
Use Cases and Best Fit
MEBAbase 24 DG-HS is a strong fit for teams evaluating Machine options and looking for a practical choice with clear technical positioning and straightforward production integration.
- Useful for buyers comparing machines in the Machine segment before moving into quote and specification review.
- Especially relevant when the shortlist depends on brand: MEBA.
- Best fit for technical and commercial teams that want a faster path from machine research to validated project discussion.
