Machine

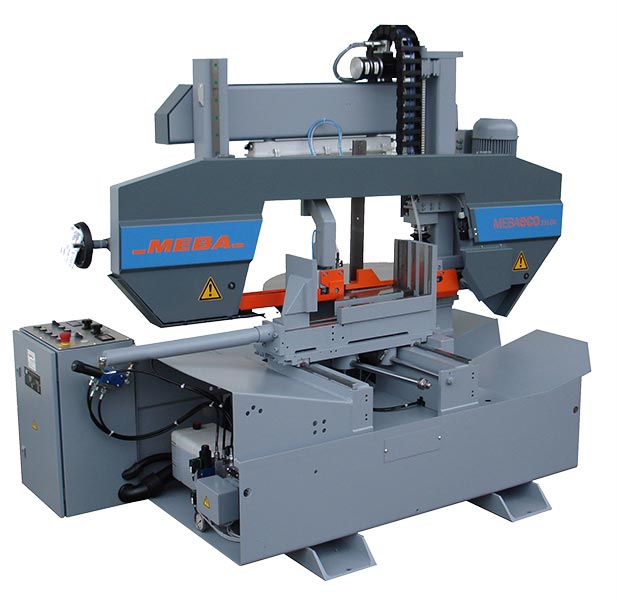

MEBAeco 335 DG

MEBAeco: Ready-made individuality Semi automatic bandsaw with 2-column linear guided double mitering. Metal-bandsawing machine with stepless mitre adjustment 30° - 45° - 90° - 135° and with patented mitre system (ERP Nr. 0491120). Especially suitable for cutting material with different cross sections. For frequent chan...

Description

MEBAeco: Ready-made individuality

Semi automatic bandsaw with 2-column linear guided double mitering. Metal-bandsawing machine with stepless mitre adjustment 30° - 45° - 90° - 135°and with patented mitre system (ERP Nr. 0491120). Especially suitable for cutting material with different cross sections. For frequent change of straight and mitre cuts.Center of rotation remains the same for each mitre.The MEBA mitre bandsawing machine MEBAeco 335 DG is an ergonomic machine built with experience gained over a long period of year. Simple central operation. Machine control according CE-Norm 89/289.

Standard equipment

Semi-automatic sawing process with workpiece clamping, sawing, and raising to the set height after the cut is complete
MEBA high-performance package: Saw feed via frequency-controlled ball screw drive with automatic cutting pressure and feed monitoring. This ensures optimum conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
Manual miter adjustment, digital readout accurate to 0.1° Quick-action lowering of the saw frame via push button to the edge of the material
Patented double miter system (ERP No. 0491120)
Automatic clamp movement and digital miter adjustment.
Hydraulic full-stroke workpiece clamping. Quick material clamping. The material is clamped parallel at 90° for every angle setting of the saw frame.
Stable two-column linear-guided saw frame
Saw blade positioned at a 3° angle to the material support surface.
Central machine control
Saw frame clearance height adjustment
Movable belt guide arm, adjustment to material width
Saw blade deflection rollers - carbide guide
Chip cleaning brush, rotating
Saw blade tension with torque wrench
Operating instructions and spare parts list (digital)
1 MEBA bimetal saw blade 4/6 ZpZ on machine
CETOP hydraulic system
Coolant system (approx. 100 liters). Can be combined with MEBA Eco micro-dosing system as an option.
Silver gray/blue gray paint finish (RAL 7001/RAL 7031)

Optional

Laser light for cut line indication/scoring saws
Chip brush driven
Microdosing system
Tension pressure regulation with fixed control panel 335 DG
Material bundle tension 335 DG 320x320mm
Material lifting roller, manual
Material lifting roller, hydraulic MEBAeco 335 DG
Control panel set up separately
Semi-automatic miter swivel 335 DG
Open the main clamping device after completing the cut
LED work light
Minimum speed monitoring on the belt disc
Special two-color paint finish according to RAL chart
Hydraulic saw blade tensioning MEBAeco 335 DG
Scraper belt conveyor for optimal chip disposal
Mobile chip tipping container for forklift transport
Water spray gun
Compressor for microdosing system
Heating for hydraulic unit
Mounting elements (4x M16)
Cutting progress control MEBA 335, 335G, 335DG
Measuring stop 0-800 mm
Floor drip tray
Roller conveyors available in various lengths

Specifications subject to change without notice.

Technical Attributes

Brand	MEBA
Cutting Capacity	Ø 335 mm / 500 x 335 mm
Working Area	500 x 335 mm
Automation	Semi-automatic
Power	3.0 kW
Recommended Use	Angular cutting, General metal cutting
