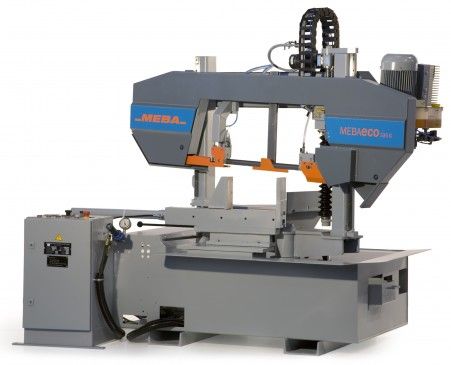

MEBAeco 335 G

MEBAeco: Ready-made individuality

2-column linear guided heavy duty metal-bandsawing machine with stepless mitre adjustment 90°- 30°. Semi automatic bandsaw.Especially suitable for cutting material with different cross sections and materials.Center of rotation remains the same for each mitre adjustment which ensures exact length measurement at 90° and mitring right up to 30°.The universally useable mitre metal bandsawing machine MEBAeco 335 G is ergonomically developed and the relation between efficiency and price is optimal. The MEBAeco 335 G is easy to operate. The performance of the machine is according to the CE-norm 89/289.

Standard equipment

• Semi-automatic sawing process with workpiece clamping, sawing, and raising to the set height after the cut is complete
• MEBA high-performance package: Saw feed via frequency-controlled ball screw drive with automatic cutting pressure and feed monitoring. This ensures optimum conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
• Rapid descent of the saw frame via push button to the edge of the material
• Manual miter adjustment from 90° to 30°, infinitely variable according to scale
• Stable two-column linear-guided saw frame
• Saw blade positioned at a 3° angle to the material support surface.
• The miter pivot point is the intersection between the saw blade and the fixed clamping jaw, which means that the length measurement does not change when the angle position is altered.
• Hydraulic full-stroke workpiece clamping. Quick material clamping. The material is clamped parallel at 90° for every angle setting of the saw frame.
• Central machine control
• AC frequency-controlled band saw drive, infinitely variable from 15 to 150 m/min
• Movable belt guide arm, adjustment to material width
• Saw blade deflection rollers - carbide guide
• Chip cleaning brush, rotating
• Saw blade tension with torque wrench
• Operating instructions and spare parts list (digital)
• 1 MEBA bimetal saw blade 4/6 ZpZ on machine
• CETOP hydraulic system
• Coolant system (approx. 100 liters)
• Silver gray/blue gray paint finish (RAL 7001/RAL 7031)
