Machine

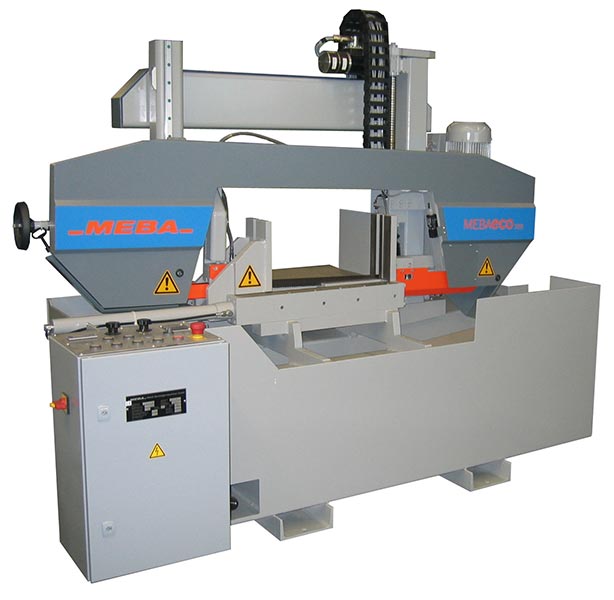

MEBAeco 335
MEBAeco: Ready-made individuality 2-column linear guided metal-bandsawing machine Semi automatic bandsaw The universally useable bandsawing machine MEBAeco 335 is ergonomically developed and the relation between efficiency and price is optimal. The MEBAeco 335 is easy to operate. The performance of the machine is accor...
Description
MEBAeco: Ready-made individuality
2-column linear guided metal-bandsawing machineSemi automatic bandsawThe universally useable bandsawing machine MEBAeco 335 is ergonomically developed and the relation between efficiency and price is optimal. The MEBAeco 335 is easy to operate. The performance of the machine is according to the CE-Norm 89/289.
Standard equipment
- Semi-automatic sawing process with workpiece clamping, sawing, and raising to the set height after the cut is complete
- MEBA high-performance package: Saw feed via frequency-controlled ball screw drive with automatic cutting pressure and feed monitoring. This ensures optimum conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
- Rapid descent of the saw frame via push button to the edge of the material
- Stable two-column linear-guided saw frame
- Saw blade positioned at a 3° angle to the material support surface
- Hydraulic full-stroke workpiece clamping. Double clamping device, which clamps the material on both the feed and discharge sides
- Central machine control
- AC frequency-controlled band saw drive, infinitely variable from 15 to 150 m/min
- Movable belt guide arm, adjustment to material width
- Saw blade deflection rollers - carbide guide
- Chip cleaning brush, rotating
- Manual saw blade tensioning with torque wrench
- Operating instructions and spare parts list (digital)
- 1 MEBA bimetal saw blade 4/6 ZpZ on machine
- CETOP hydraulic system
- Separate coolant device (approx. 100 liters) removable. Can be combined with MEBA micro-spray device as an option.
- Silver gray/blue gray paint finish (RAL 7001/RAL 7031)
Optional
- Laser light for cutting line display/scoring saws
- Chip brush driven
- microdosing system
- Tension pressure regulation with fixed control panel
- Hydraulic material bundle tension
- Material support table on the feed side
- Material support table on feed side with lifting roller
- Control panel set up separately
- Open the main clamping device after completing the cut.
- LED work light
- Minimum speed monitoring on the belt disc
- Measuring stop 0-500 mm
- Special two-color paint finish according to RAL chart
- Hydraulic saw blade tensioning
- Scraper belt conveyor for optimal chip disposal
- Mobile chip tipping container for forklift transport
- water spray gun
- Compressor for microdosing system
- Heating for hydraulic unit
- Mounting elements (4x M16)
- Cutting progress control MEBA 335, 335G, 335DG
- Roller conveyors available in various lengths
Specifications subject to change without notice.
Technical Attributes
| Brand | MEBA |
|---|---|
| Cutting Capacity | Ø 335 mm / 500 x 335 mm |
| Working Area | 500 x 335 mm |
| Automation | Semi-automatic |
| Power | 3.0 kW |
| Recommended Use | General metal cutting, Straight cutting |
